We offer a comprehensive range of mining trucks designed to meet diverse operational requirements. Our inventory includes haul trucks, concrete mixers, and mobile refueling tankers, covering all your on-site needs. Engineered for complex mining environments, our vehicles deliver exceptional load capacity, mobility, and durability. With professional quality and comprehensive service, we help mining enterprises enhance transport efficiency and reduce operating costs. Partner with us for reliable performance and superior support.Mining concrete mixer truck Mining concrete mixer truck
mining-concrete-mixer-truck-5m3

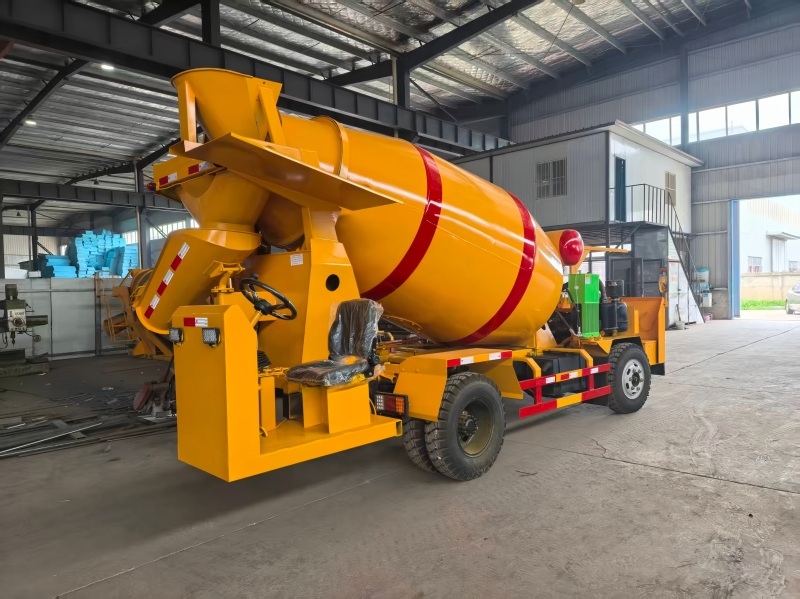

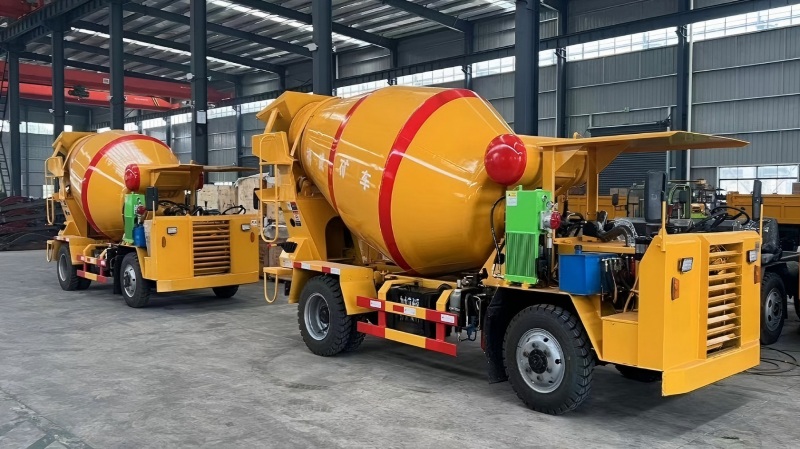

Specifications for 5m³ Mining Concrete Mixer Truck | |
Engine model | YUCHAI 4108Full Power Turbocharging |
Engine horsepower | 160HP |
Transmission model | WLY 145 rear mounted |
volume | 5m3 |
Drive type | Rear-wheel drive |
Front axle model | 1061 |
Rear axle model | 1098D cast axle（153reducer） |
Front Tire Model | 2 sets 825-16 mining tire |
Rear Tire Model | 4 sets 825-16 mining tire |
Overall Dimensions | 6200*2150*3100mm |
Reducer Type | PMP hydraulic |
Mixer Drum PTO Type | Full-Power PTO from Diesel Engine |
Steering System | Full Hydraulic Power Assistance |
Brake Type | Air brake |
wheelbase | 3100mm |
Exhaust Gas Treatment | Exhaust Gas Filtered Through Water Tank |
Front Leaf Spring | 16 pieces 70*12mm |
Rear Leaf Spring | 14 pieces 75*15mm |
Frame Material | 200*80*8mm High-Strength Rectangular Steel |
Mine-use concrete mixer trucks are specifically engineered for complex operating conditions such as mines,
tunnels, and underground roadways. They are widely utilized in underground mining, hydropower projects,
subway tunnels, and defense engineering.
Featuring a compact body and low center of gravity, these trucks are well-adapted to transportation in narrow
roadways and long slopes. During underground wet-mix shotcreting operations, they work in tandem with
shotcrete machines to ensure continuous mixing and conveying of concrete, thereby guaranteeing construction
continuity. Designed for special environments like inclined shafts and small cross-sections, they significantly
enhance both construction efficiency and safety.
